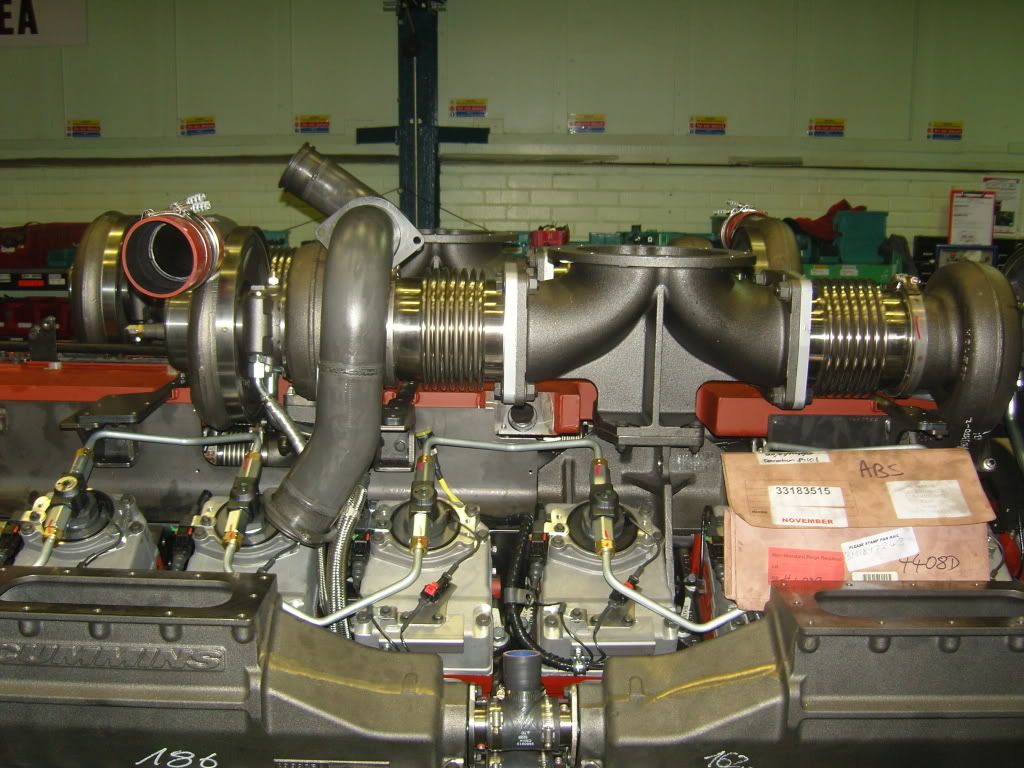

The turbos on top are my invested interest...
I had to go down the Daventry engine plant to day. To sort out a design problem with the V band. (Holds the orientation of the compressor housing) Anyhow thought I'd take a few pics to show my fellow MOC'ers what a 'proper' engine looks like!
Lets start....

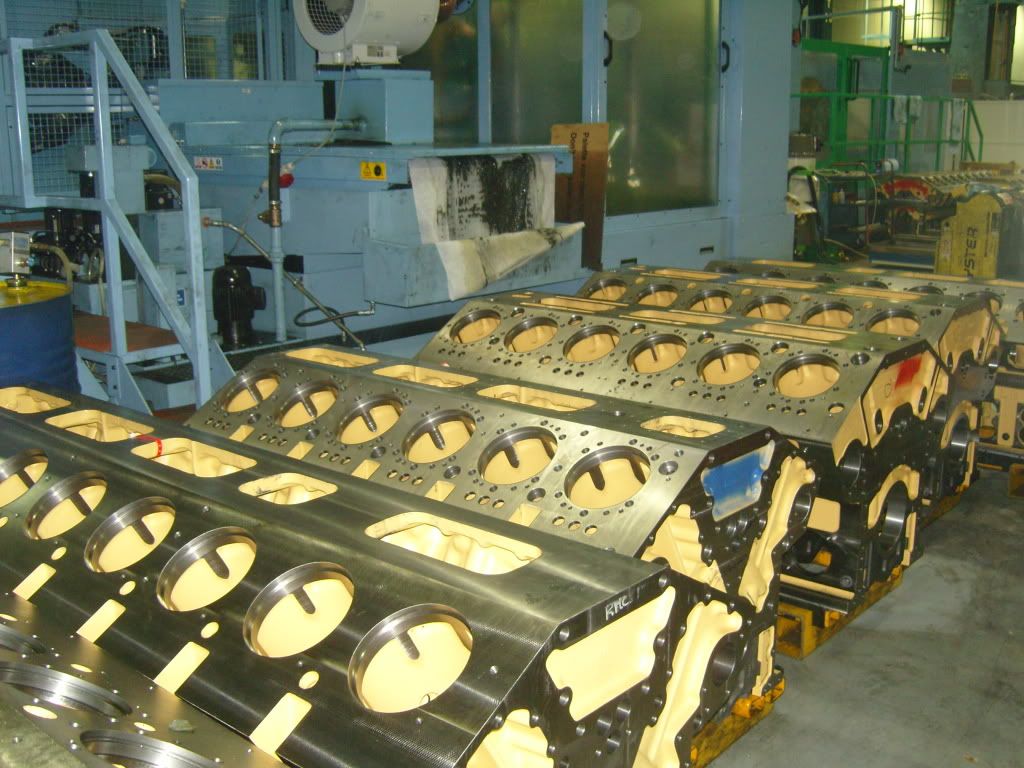

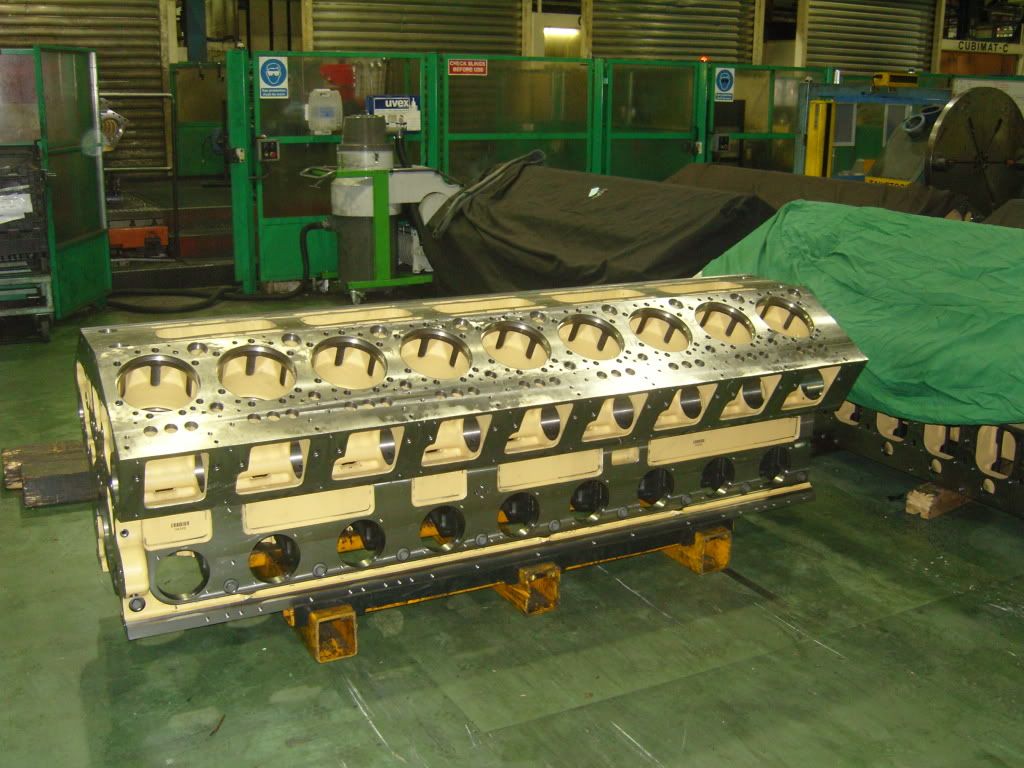

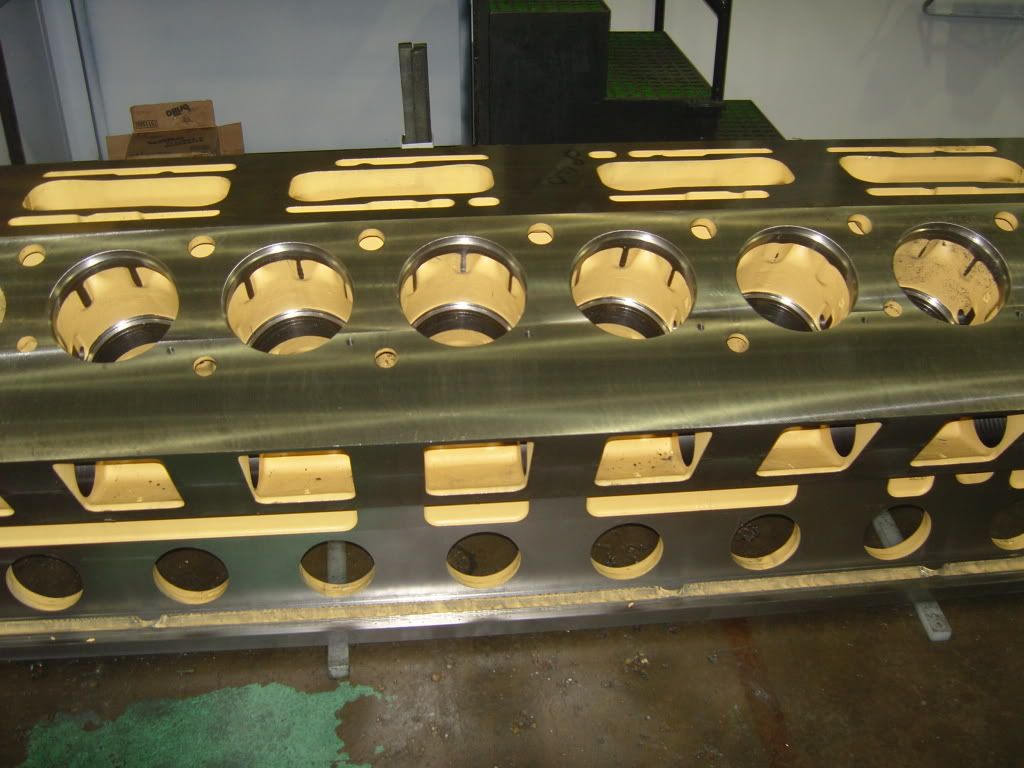

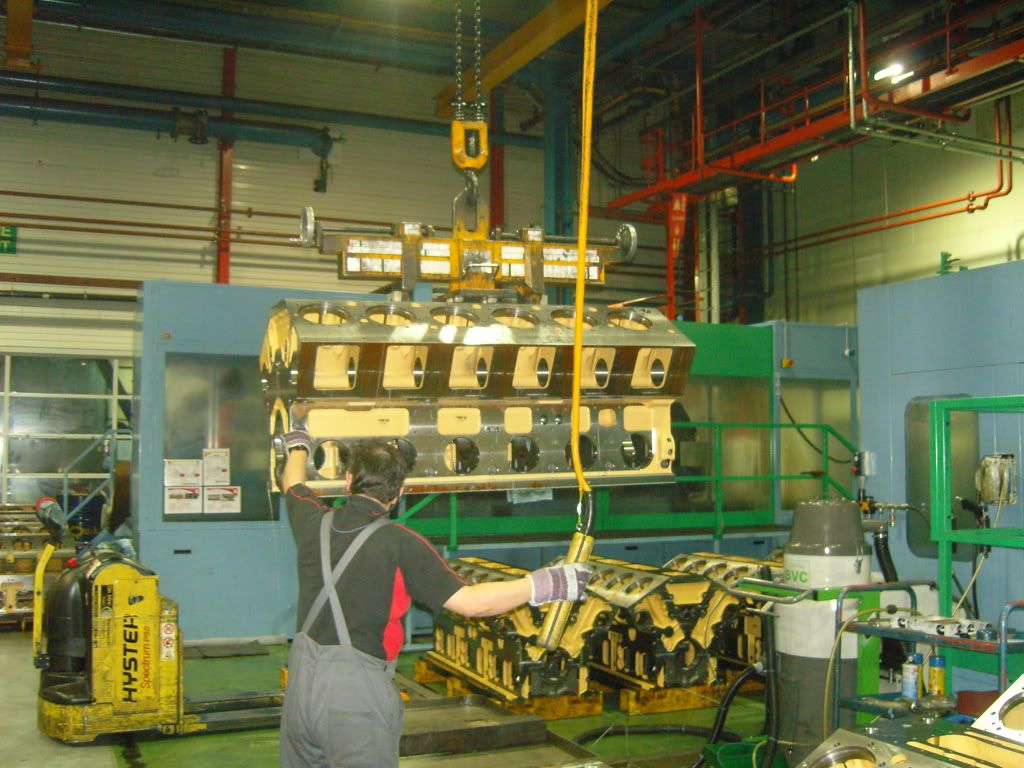

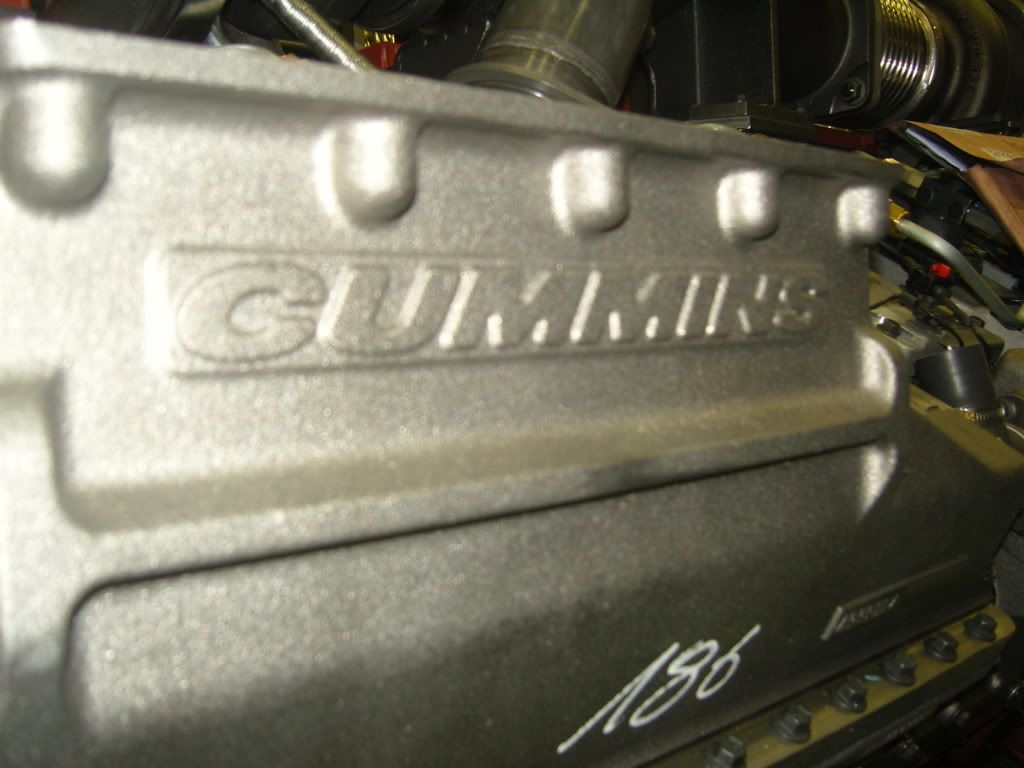

Raw engine block fresh in from casting..

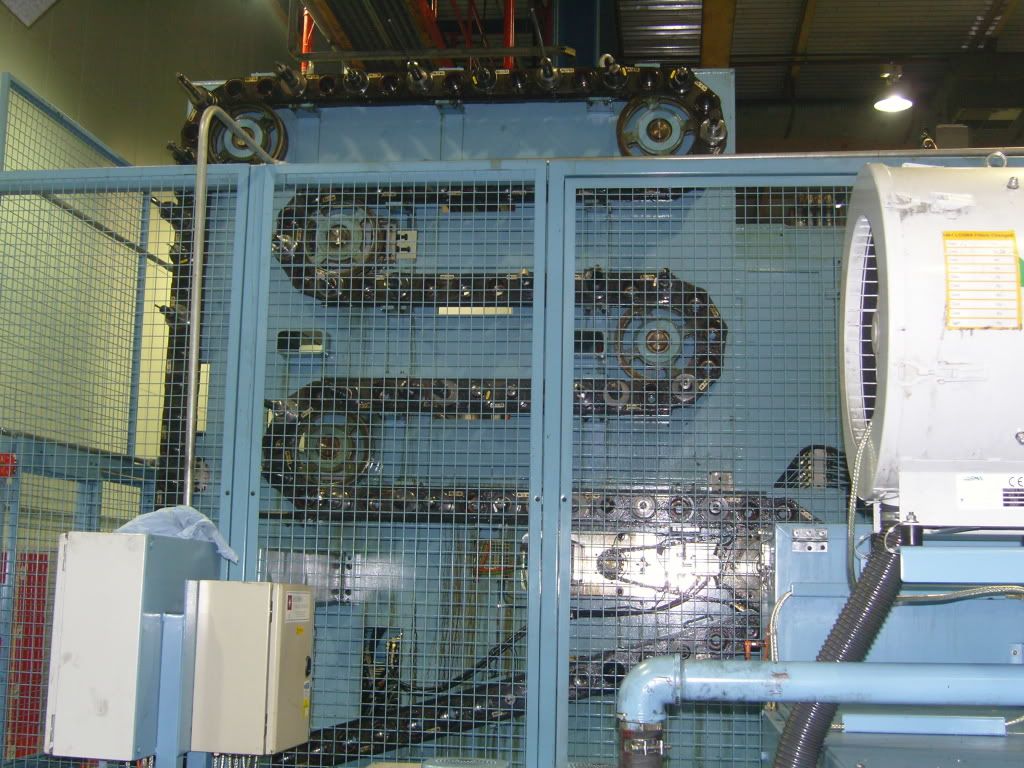

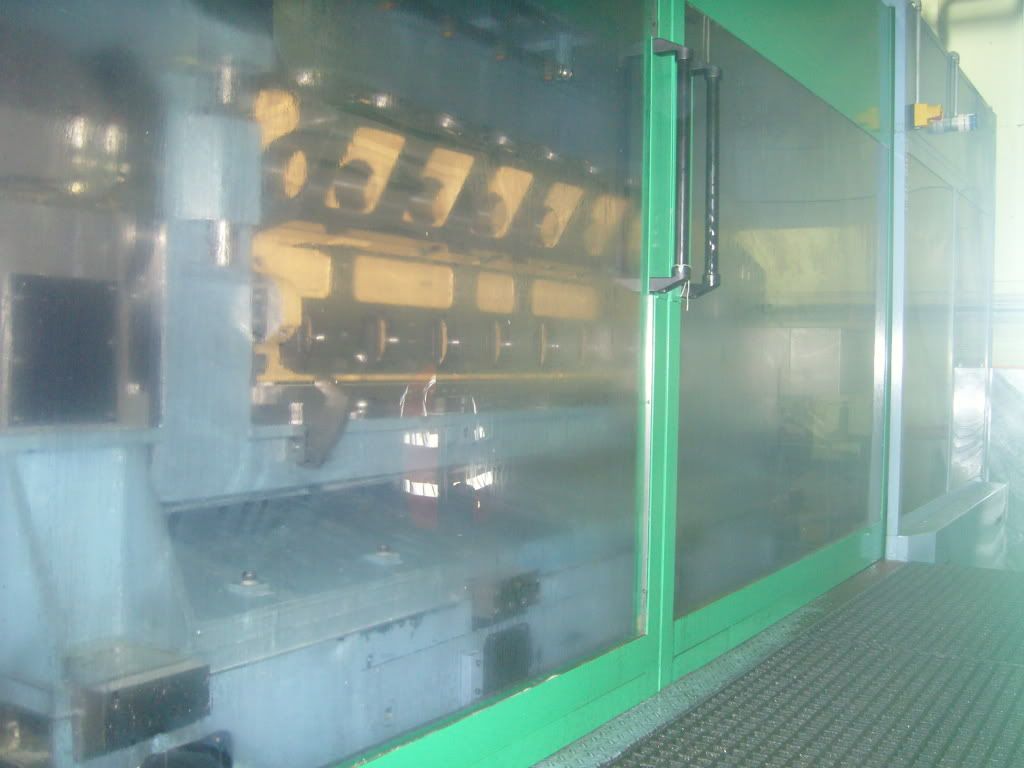

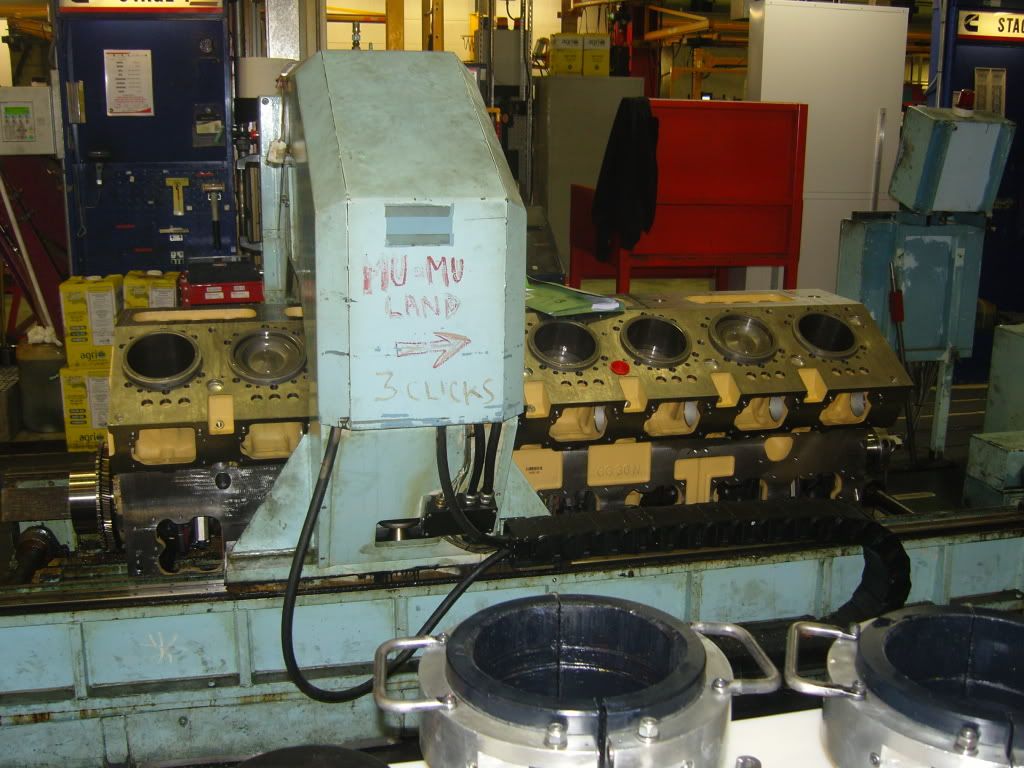

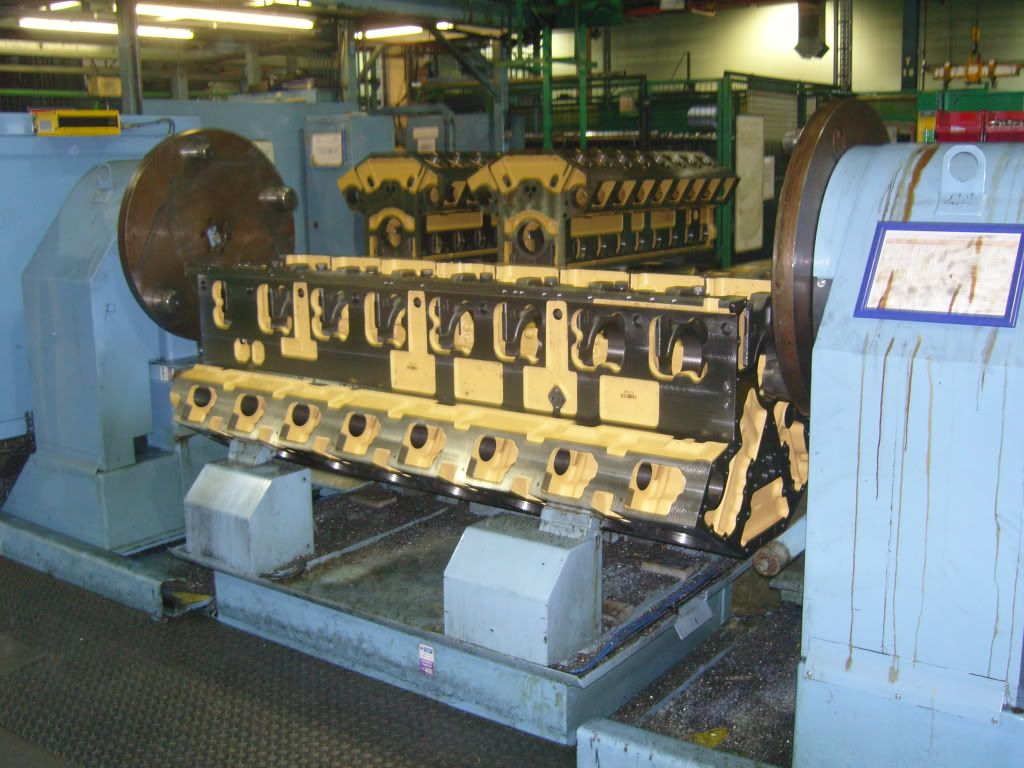

Into the mill..

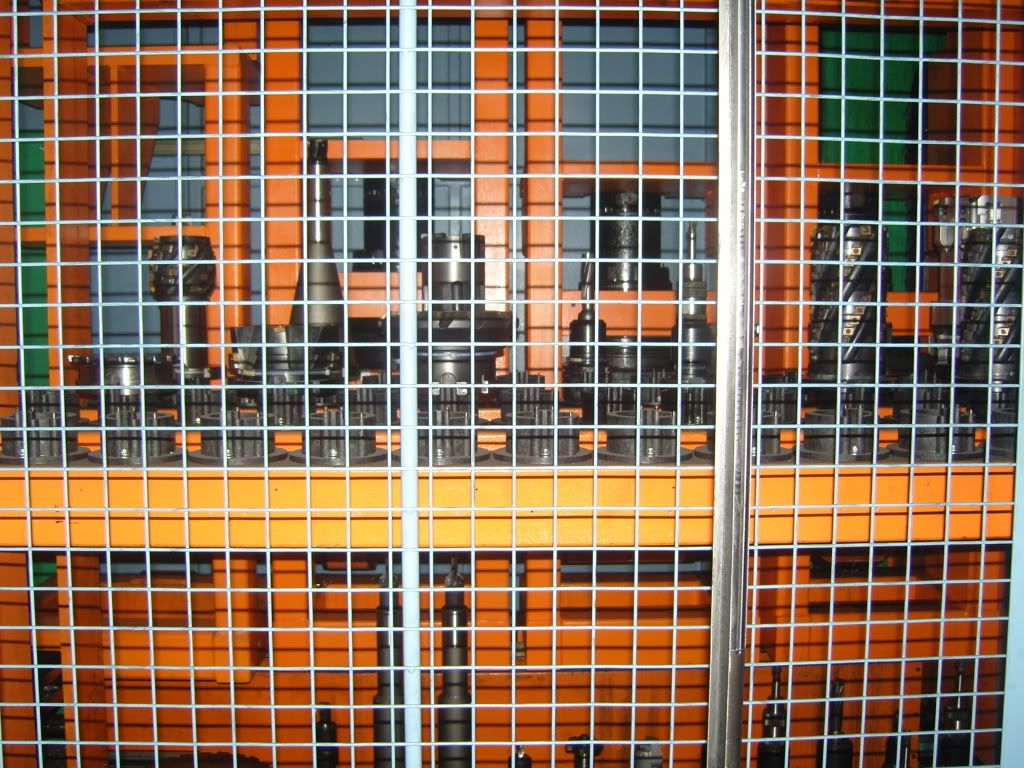

Now this is tool selection!!..

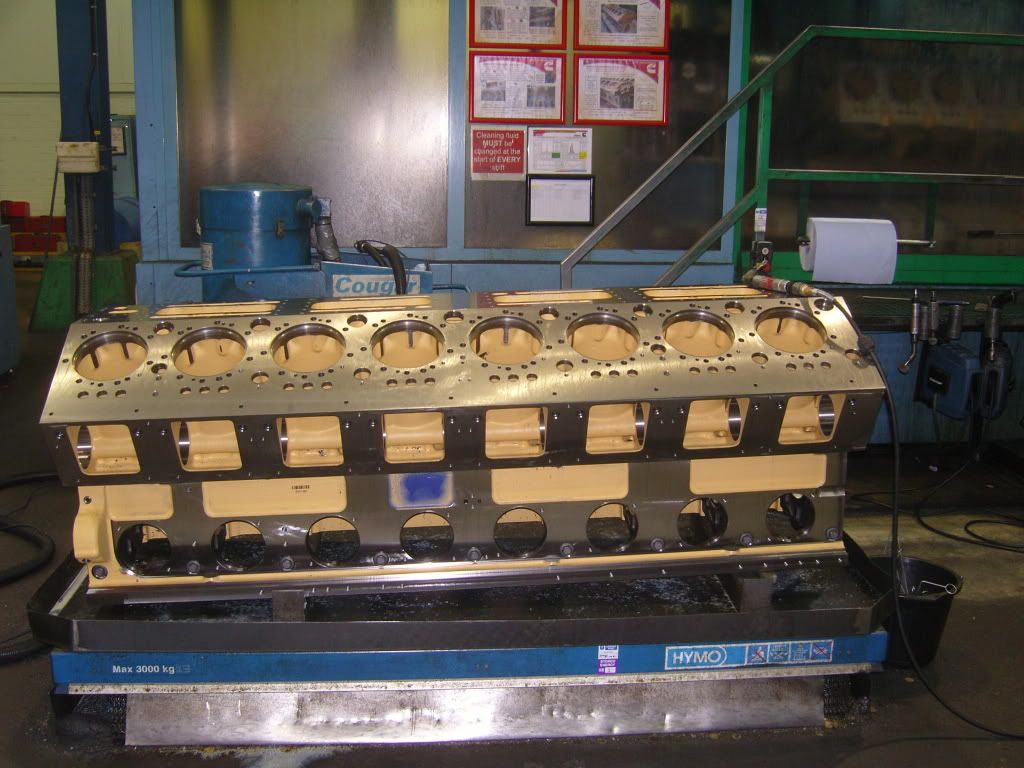

Finished block
Like a fine lady pooling down her top...

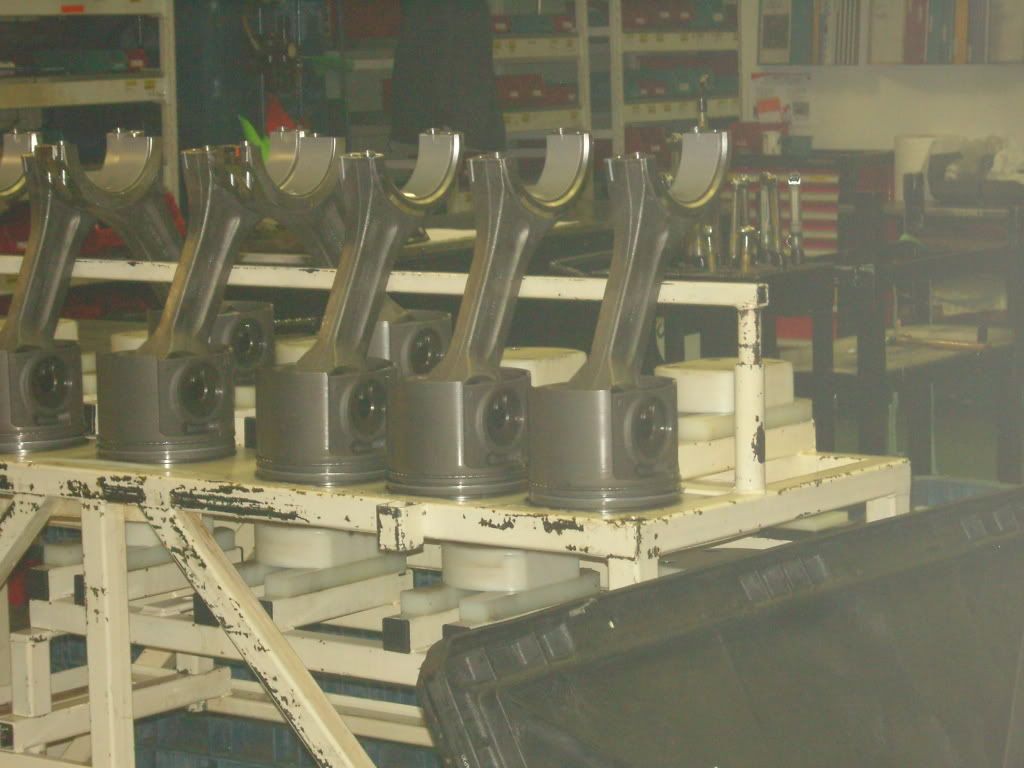

Pistions (dog legged for less stress)..

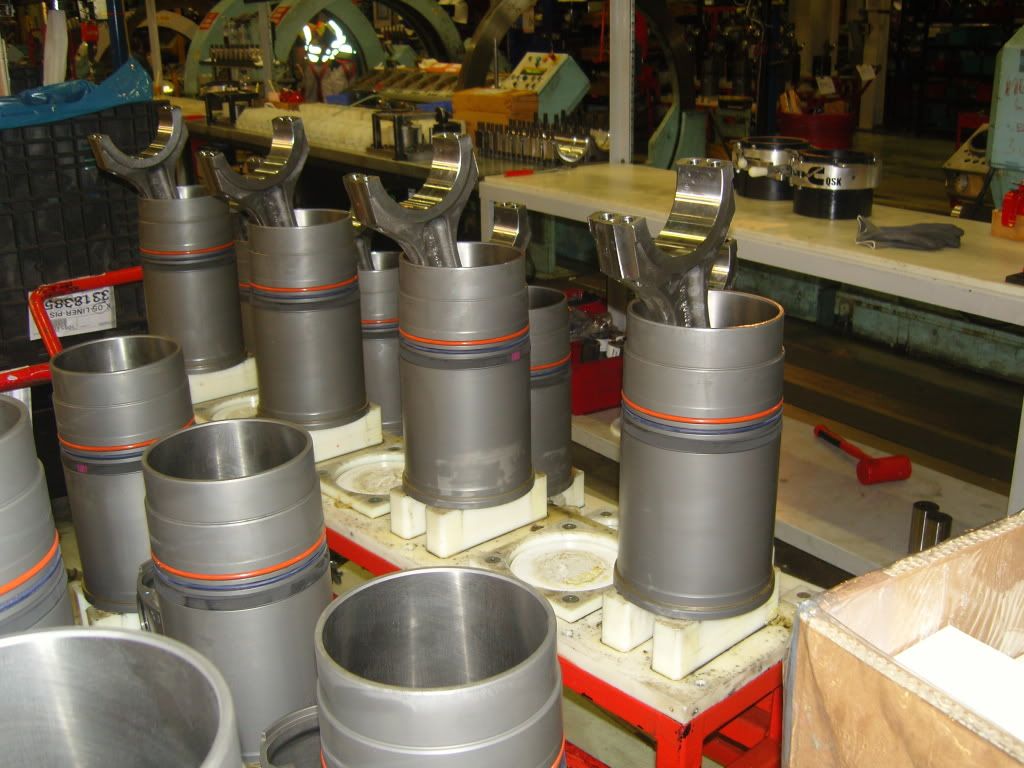

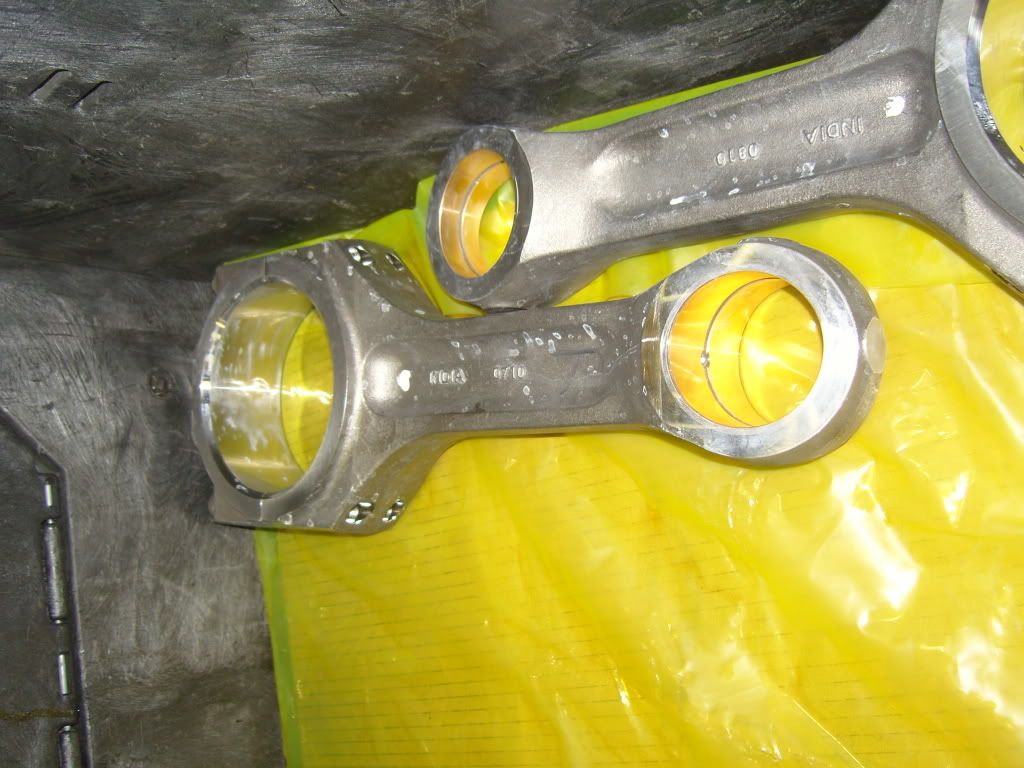

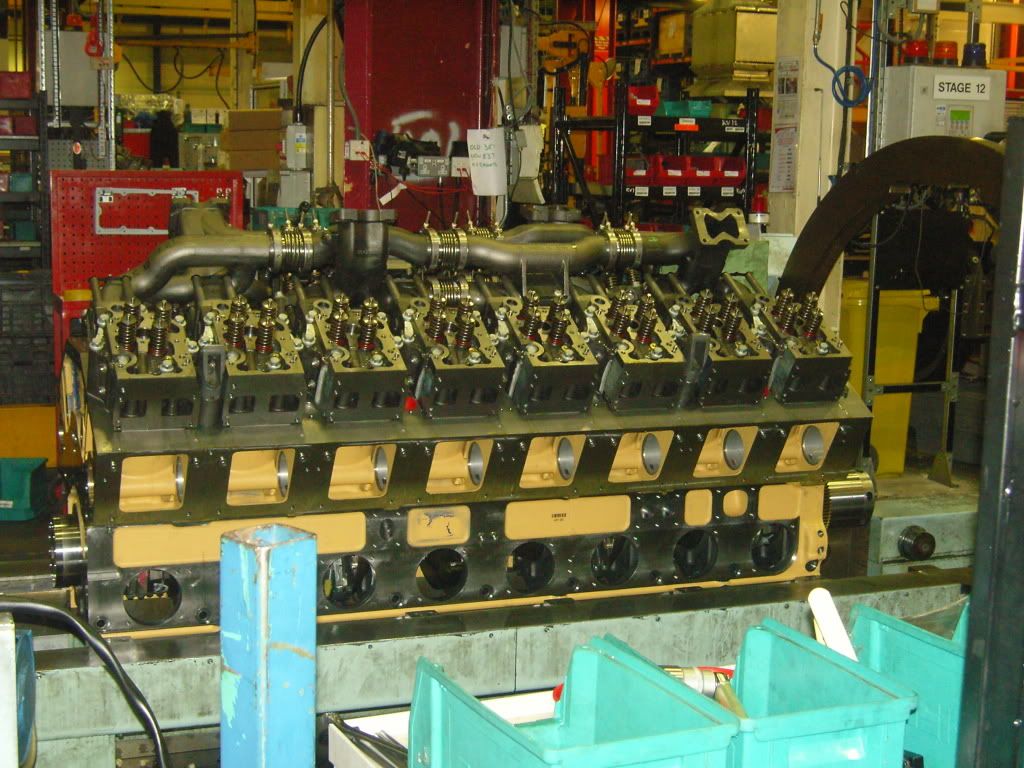

Pistons in housing

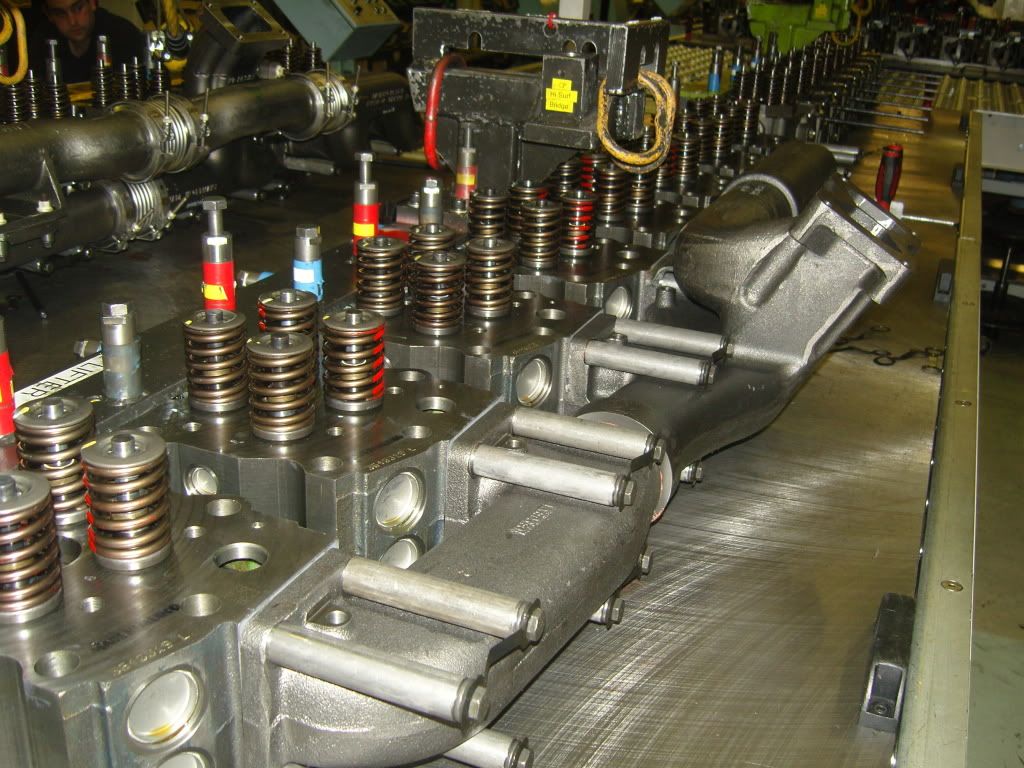

Valves...

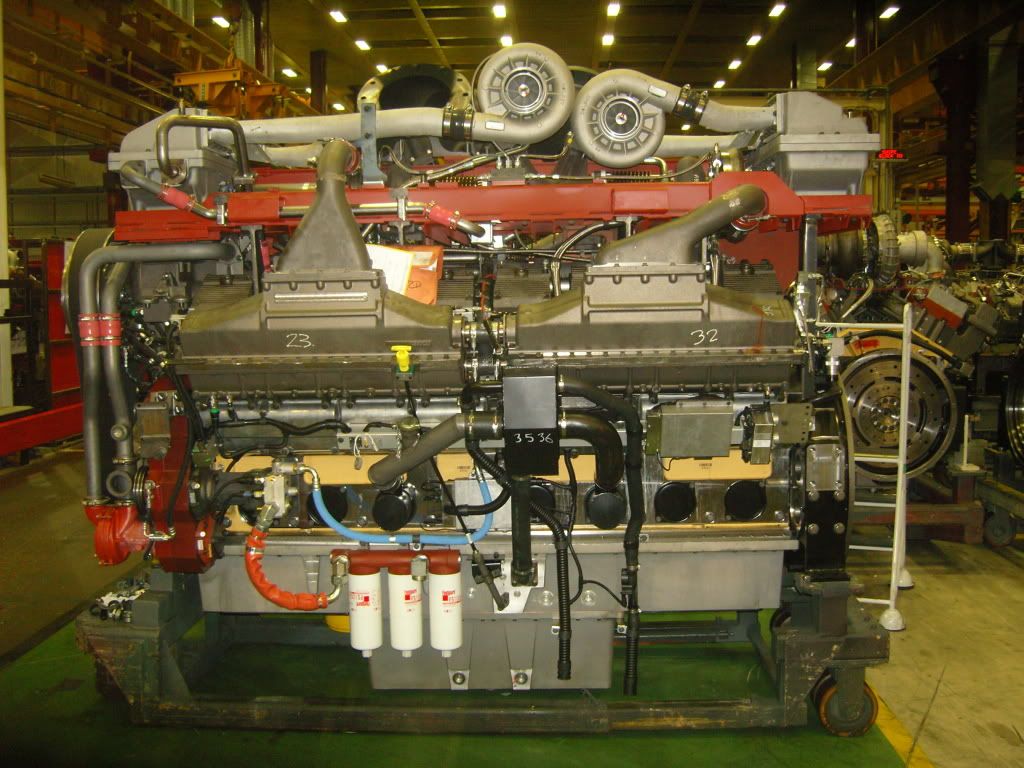

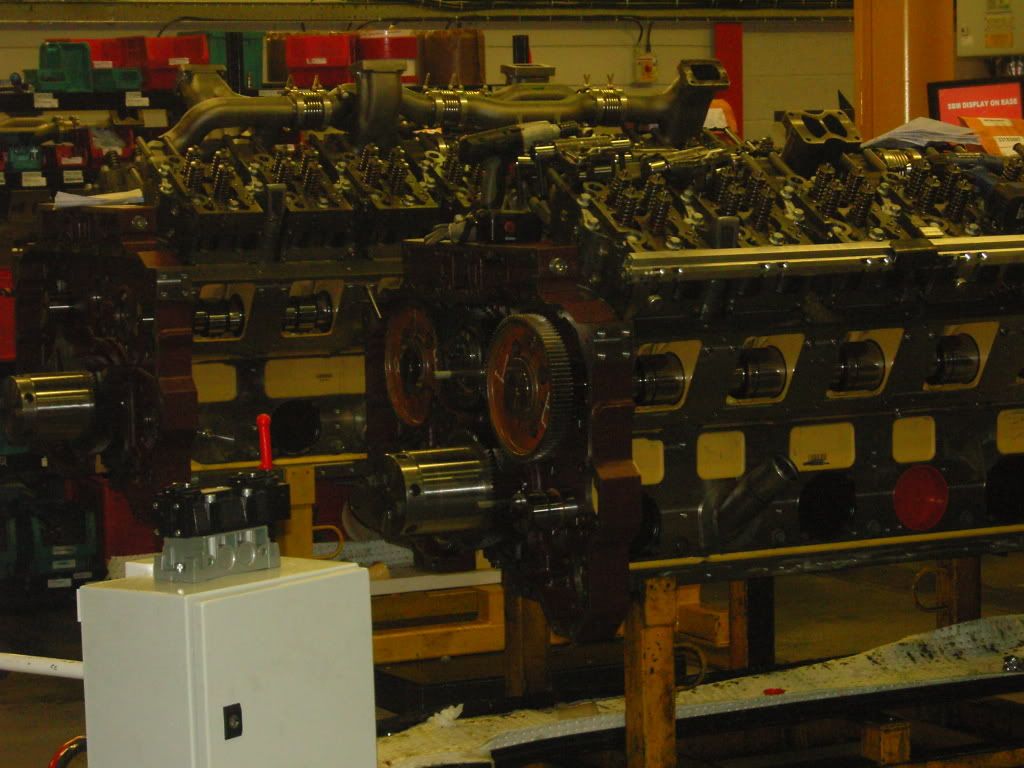

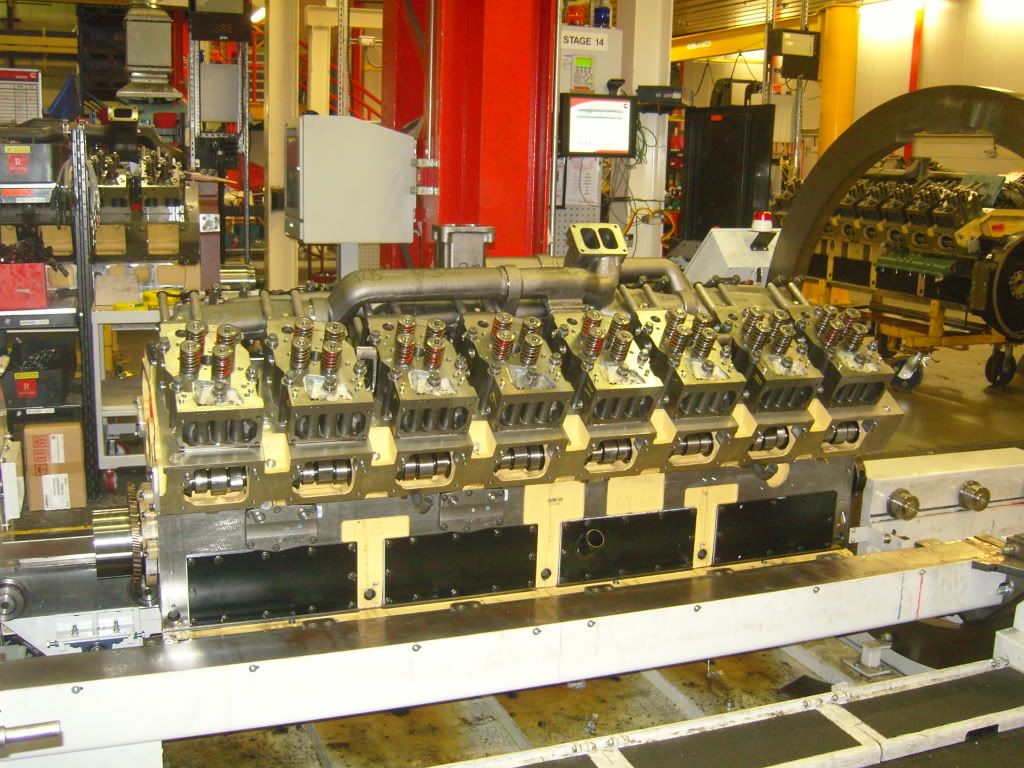

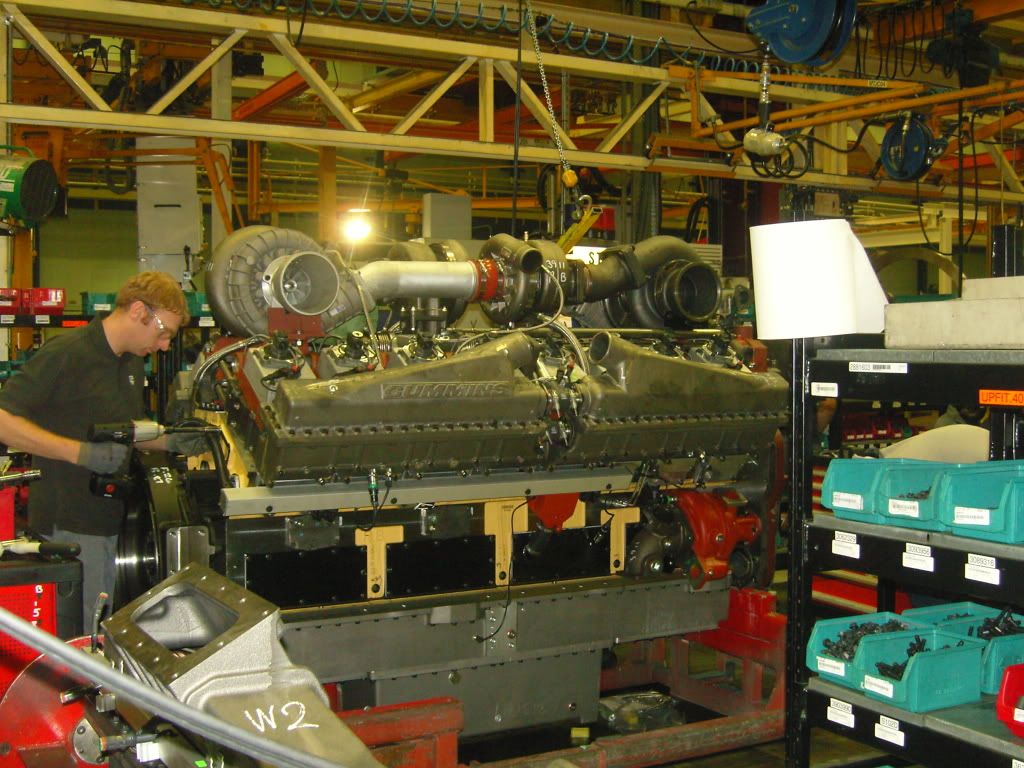

Assembly
Now this is a torque wrench!
Fitting fly wheel (before/after)
Rejections

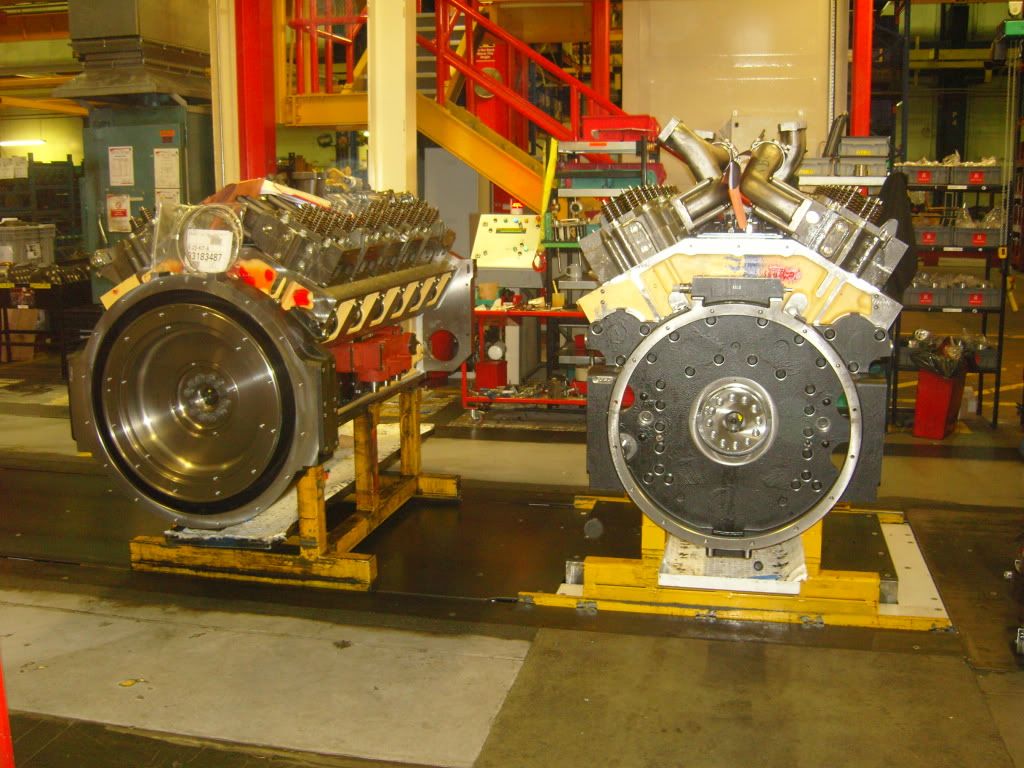

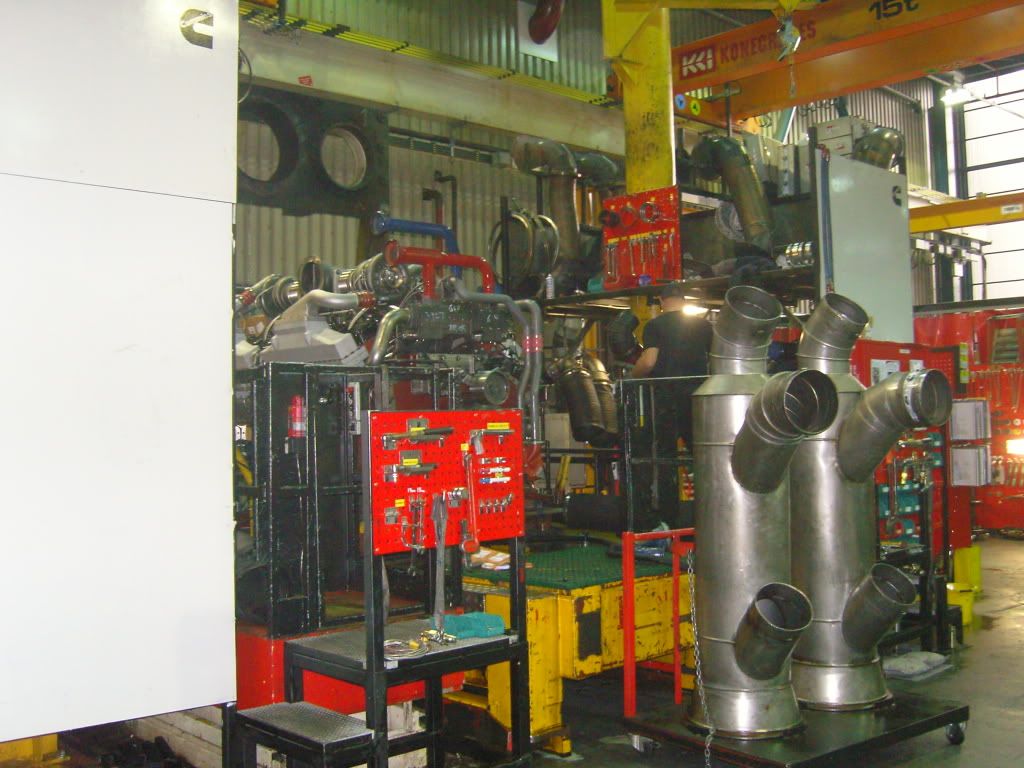

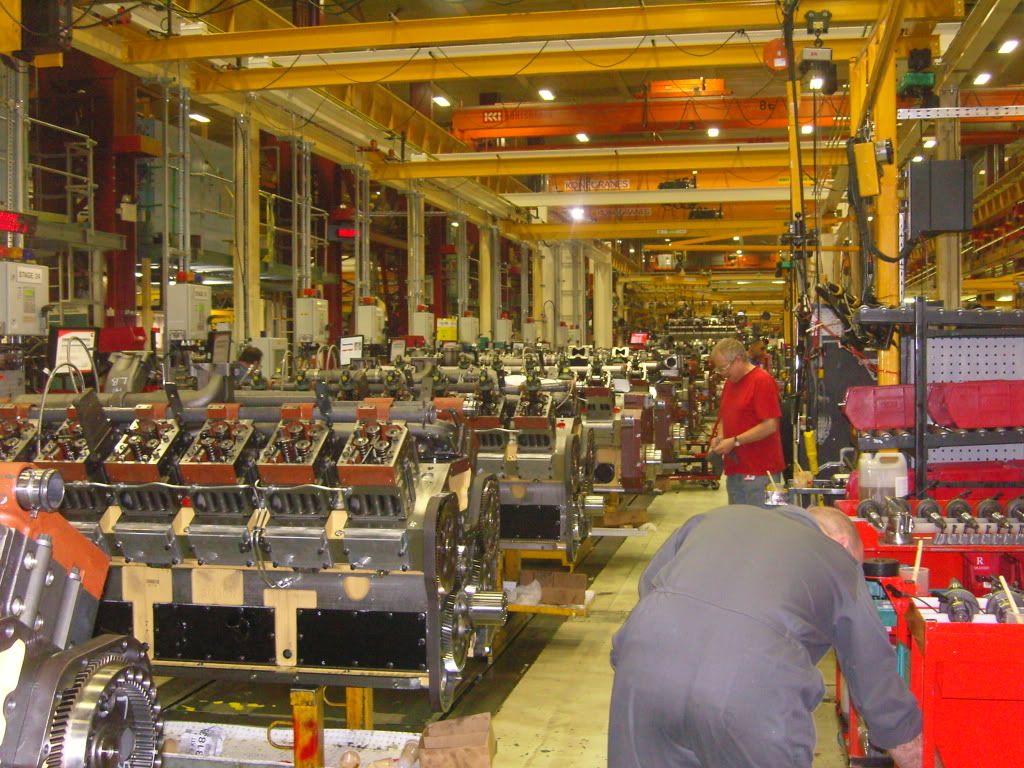

A look down the line...

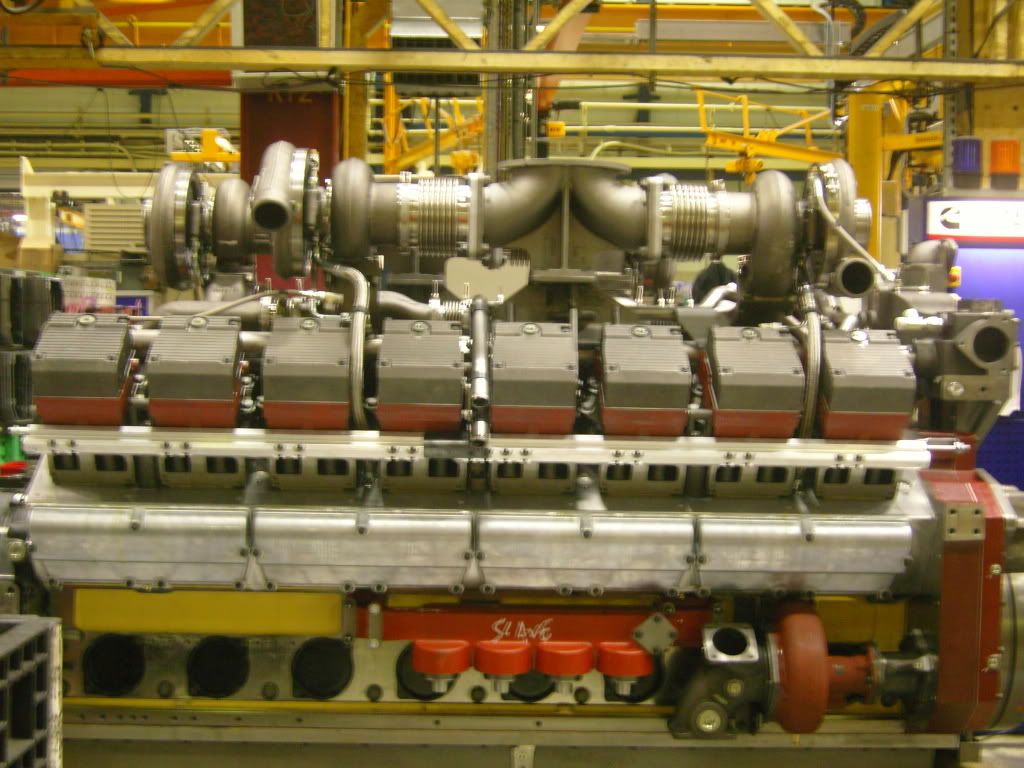

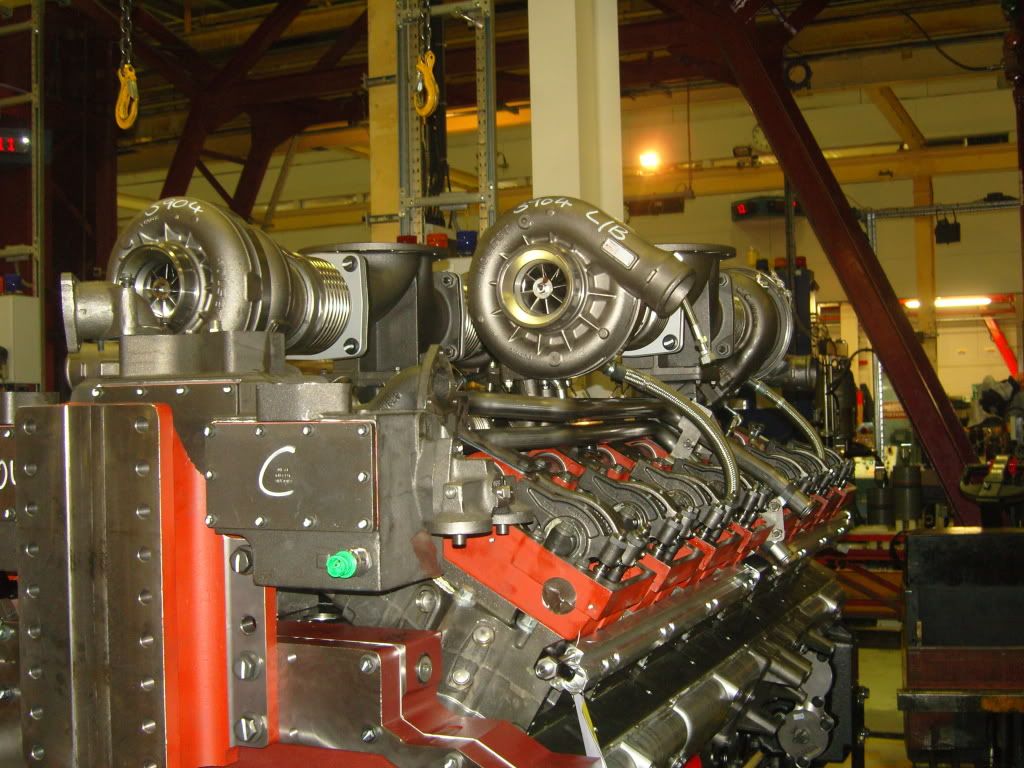

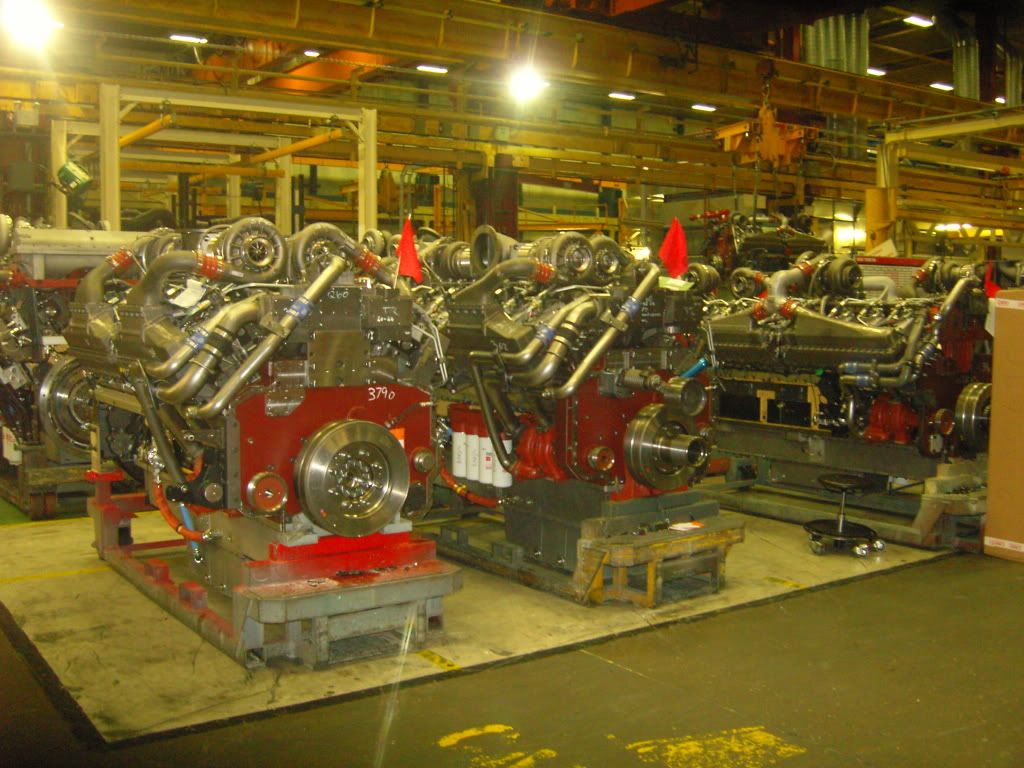

Now the turbos...
More rejections...
Nice...
Injectors..

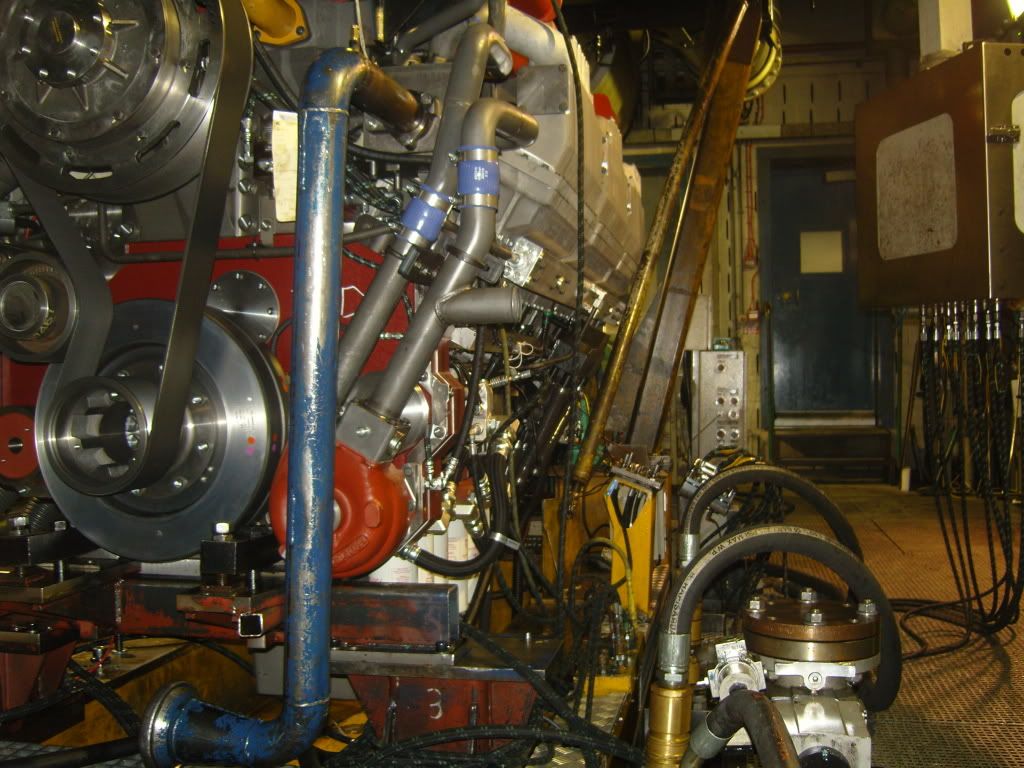

Test bed...

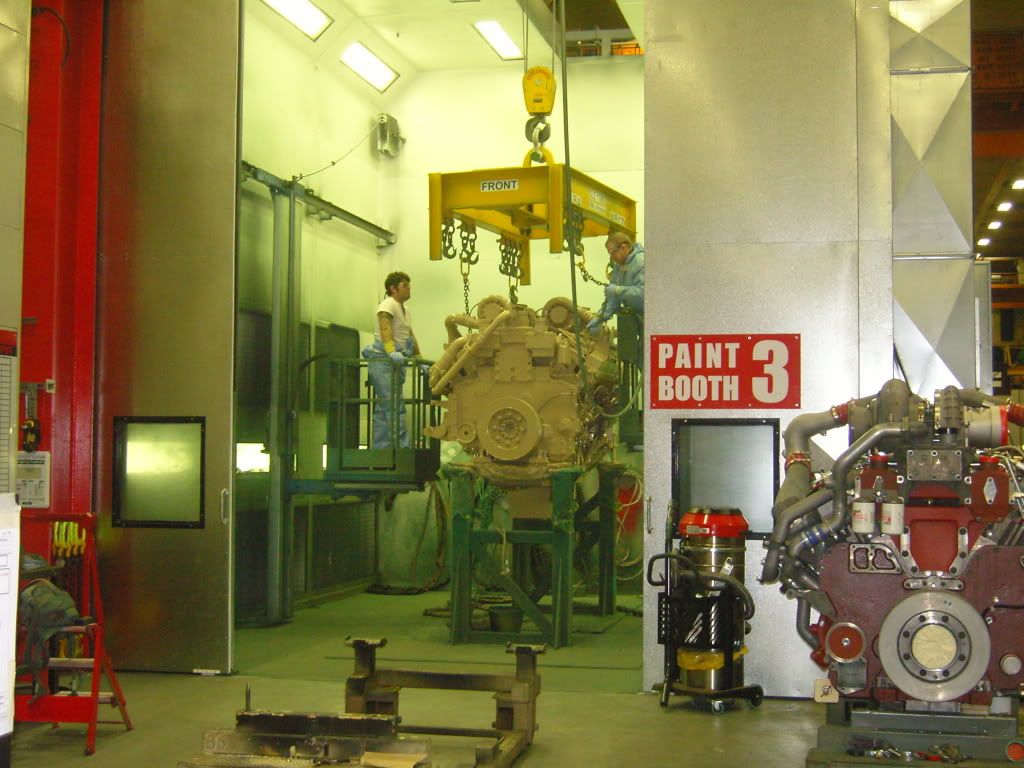

Paint...

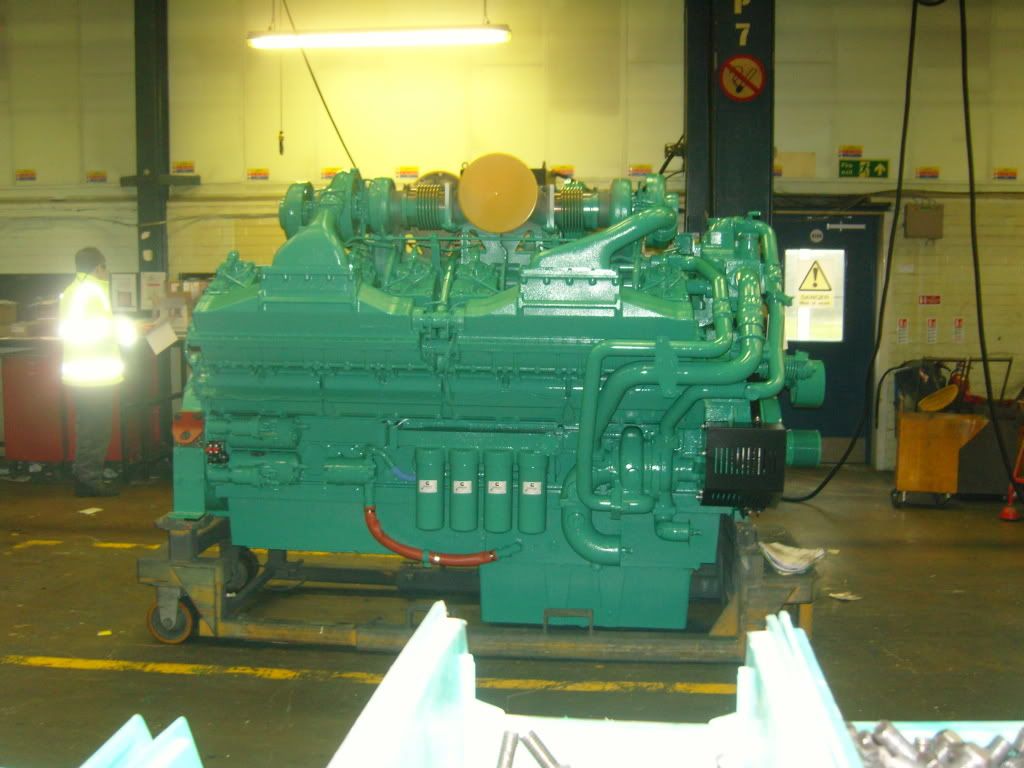

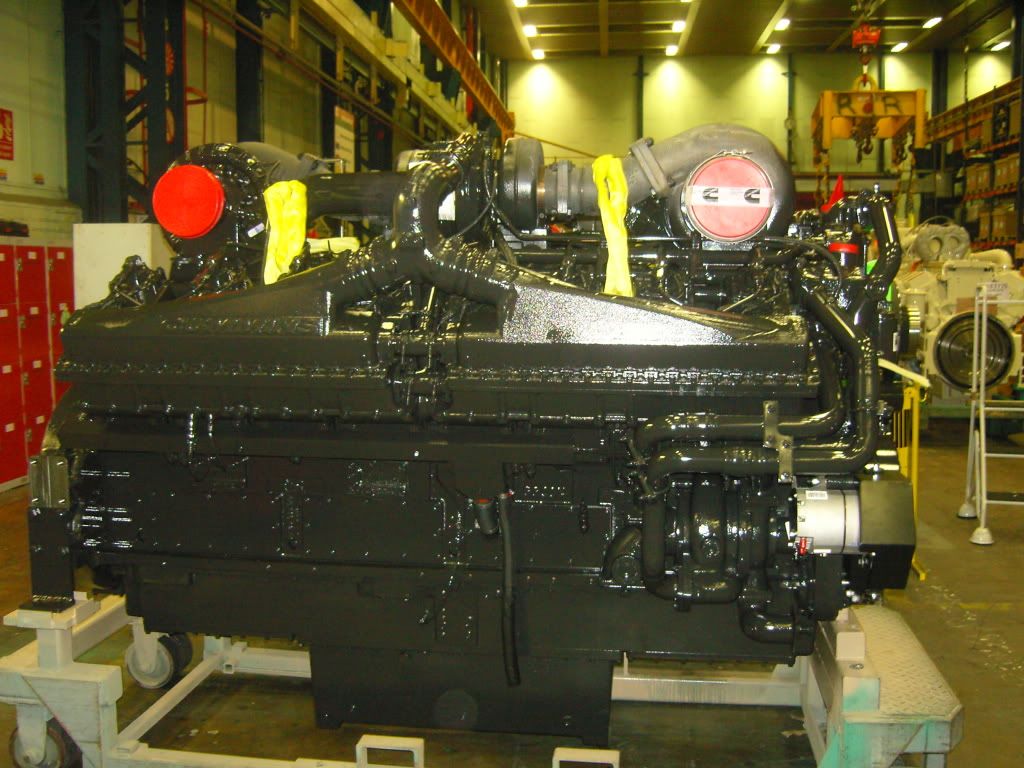

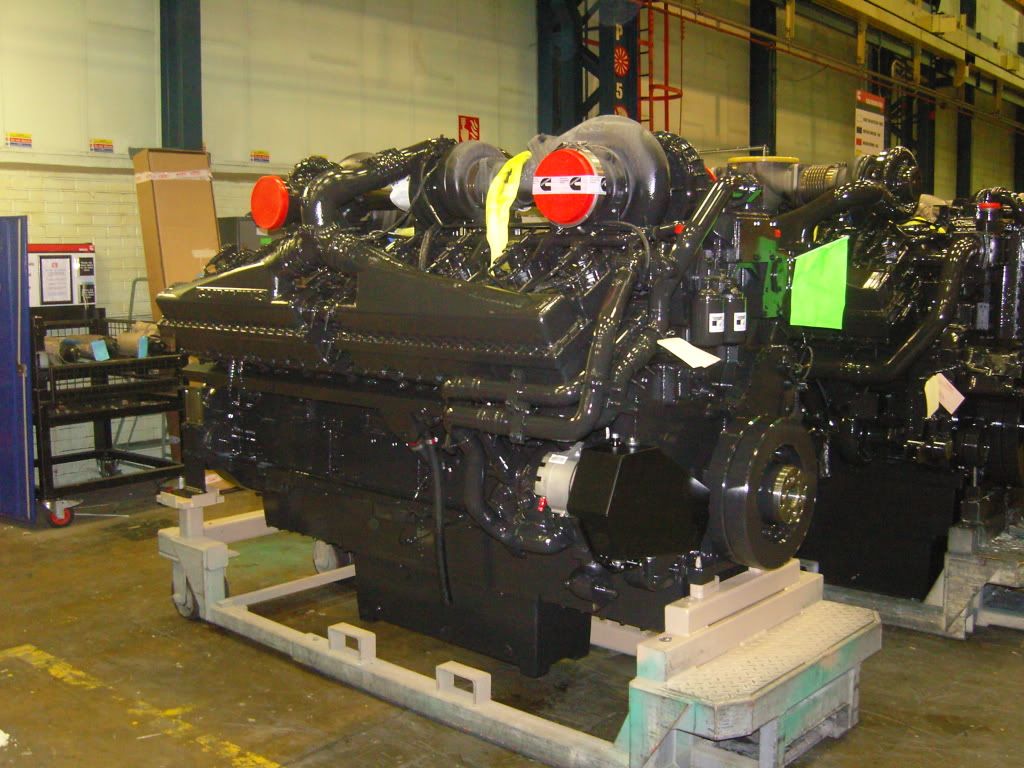

The finished product..
Now thats what i call power...
Sort of puts a 2/3L engine in perspective!
